Auxiliary Fuel Cell for the Honda GL1800 Goldwing
Range Anxiety? — Nevermore!
Specs
- 5.75 Gallons
- Vacuum Feed
- Internal Baffles
- Powder Coated
- 1/8" NPT Weld Fittings
- Welded Ground Lug
- Meets IBA Tech Requirements
- 18-Gage Stainless-Steel Construction
Features
- Built-in Tie-down Loops
- Mounts/Dismount in Minutes
- Full Trunk Access
- Ground Lug
- Includes Fuel Cap
- Fits Seats with Built-In Back-Rest
- Does Not Include Plumbing or Puke Tank
Vacuum Fed Fuel Transfer
Main Tank
creates vacuum at the vent fitting as the engine draws fuel. That vacuum pulls fuel from the QuickTank. The bike's fuel gauge will show full for nearly 6 gallons as the QuickTank is drawn down.
QuickTank

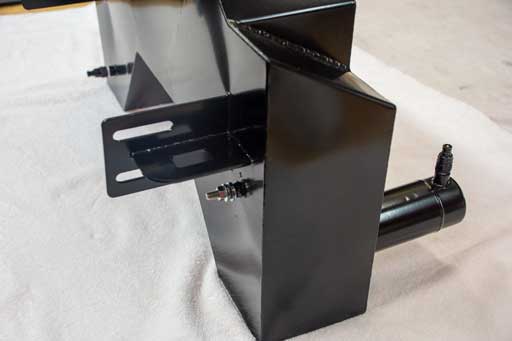

uses dry-disonnect couplers at the drain and vent fittings to eliminate the need for a shut-off valve. Because the QuickTank acts as the vent line for the main tank, you will need a disconnect plugged into the fill line on the bike to run the bike without the Quicktank.
